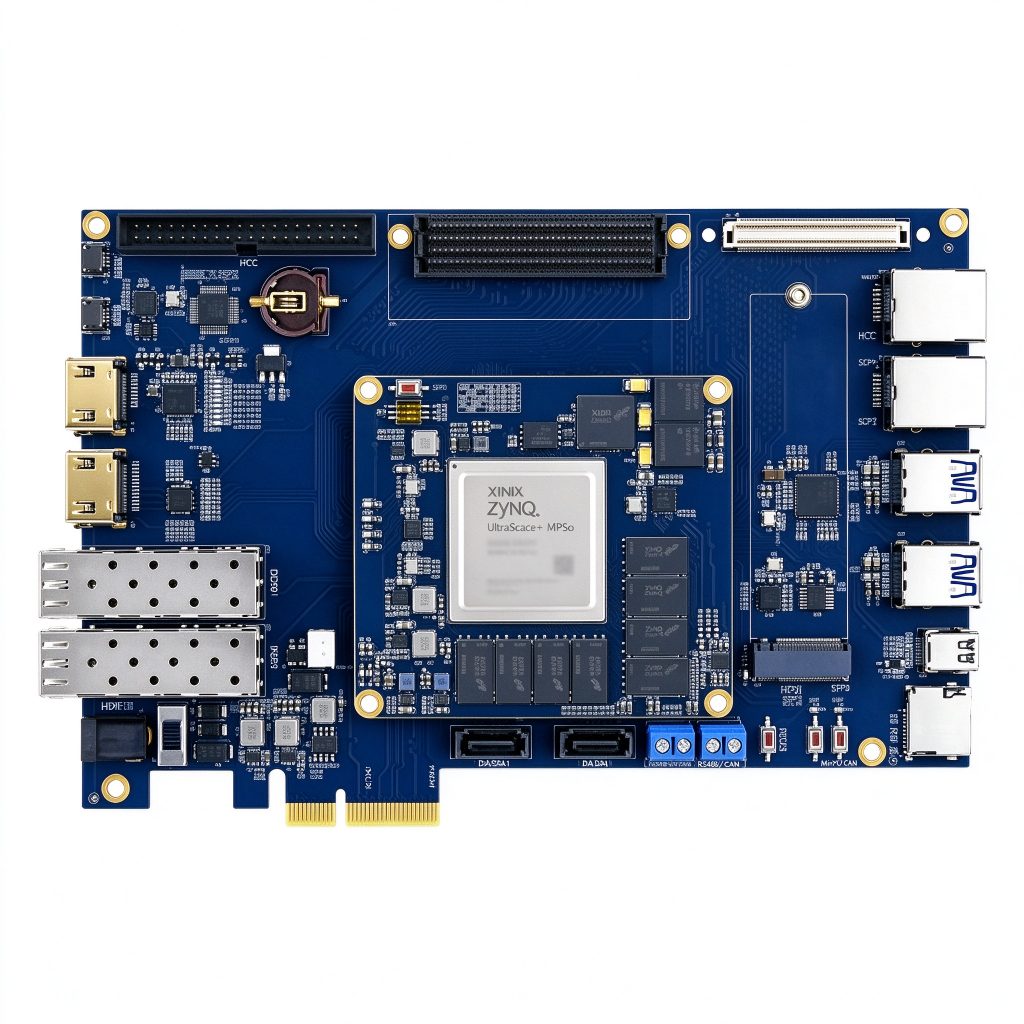

The DUUZ7EV development board is based on the Xilinx Zynq UltraScale+ MPSoC XCZU7EV-2FFVC1156I industrial-grade chip, integrating a quad-core ARM Cortex-A53 application processor + dual-core Cortex-R5F real-time processor + Mali-400MP2 GPU. The PL side features approximately 504K logic cells, 230K LUTs, 1,728 DSP slices, and 11 Mb Block RAM. Onboard are 4GB PS-side DDR4 + 4GB PL-side DDR4, 32GB eMMC mass storage, and 20 pairs of GTH high-speed transceivers. The carrier board exposes 2× SFP+ optical ports, PCIe 3.0 x edge connector, dual FMC expansion ports (HPC + LPC), HDMI 4K input/output, dual Gigabit Ethernet, 4× USB 3.0, 2× SATA, Mini DP output, and dual MIPI CSI camera interfaces. PYNQ support enables rapid development. It is an ideal platform for industrial vision, video processing and communications prototyping applications. Typical applications: industrial automation and machine vision, video image processing and codecs, 5G communications prototyping and testing, AI inference and edge computing, industrial control and data acquisition, and research/education prototyping.
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
The DUUZ7EV development board is based on the Xilinx Zynq UltraScale+ MPSoC XCZU7EV-2FFVC1156I industrial-grade chip, integrating a quad-core ARM Cortex-A53 application processor + dual-core Cortex-R5F real-time processor + Mali-400MP2 GPU. The PL side features approximately 504K logic cells, 230K LUTs, 1,728 DSP slices, and 11 Mb Block RAM. Onboard are 4GB PS-side DDR4 + 4GB PL-side DDR4, 32GB eMMC mass storage, and 20 pairs of GTH high-speed transceivers.
The carrier board exposes 2× SFP+ optical ports, PCIe 3.0 x edge connector, dual FMC expansion ports (HPC + LPC), HDMI 4K input/output, dual Gigabit Ethernet, 4× USB 3.0, 2× SATA, Mini DP output, and dual MIPI CSI camera interfaces. PYNQ support enables rapid development. It is an ideal platform for industrial vision, video processing and communications prototyping applications.
Typical applications: industrial automation and machine vision, video image processing and codecs, 5G communications prototyping and testing, AI inference and edge computing, industrial control and data acquisition, and research/education prototyping.
| Parameter | Specification |
|---|---|
| Product Model | DUUZ7EV V1.0 |
| MPSoC Chip | Xilinx XCZU7EV-2FFVC1156I (Industrial) |
| PS Processor | Quad ARM Cortex-A53 @ 1.3GHz + Dual Cortex-R5F @ 533MHz |
| GPU | Mali-400MP2 @ 667MHz |
| PL Logic Cells | ~504,000 Logic Cells |
| PL LUTs | 230,000 LUTs |
| PL DSP Slices | 1,728 |
| PL Block RAM | 11 Mb |
| GTH Transceivers | 20 pairs TX/RX · up to 16.3 Gbps |
| GTR Transceivers | 4 pairs TX/RX (PS side) |
| DDR4 Memory | PS 4GB + PL 4GB |
| eMMC Storage | 32GB |
| QSPI Flash | 256Mb + 256Mb dual-boot |
| Boot Modes | JTAG · QSPI · SD · eMMC |
| Optical Interfaces | 2 × SFP+ (10G) |
| FMC Expansion | 1 × FMC HPC (8 GTH, 72 I/O) + 1 × FMC LPC |
| PCIe | PCIe 3.0 x edge connector |
| Ethernet | PS 1× GigE + PL 1× GigE |
| Video | 1 × HDMI input + 1 × HDMI 2.0 output + 1 × Mini DP |
| USB | 4 × USB 3.0 host |
| Storage Expansion | 2 × SATA · 1 × SD card · 1 × M.2 NVMe SSD |
| MIPI | 2× MIPI CSI-2 camera input |
| Others | UART · RS485 · CAN · 4× user LED · 4× push buttons · RTC · EEPROM |
| SoM Size | 85 × 75 mm (168P board-to-board ×2) |
| Carrier Size | 180 × 140 mm · ENIG |
| Power Supply | +12V / 3A DC input |
Industrial sites impose strict requirements on control equipment: wide temperature range, interference immunity and deterministic latency. FPGA handles real-time control, protocol parsing and high-speed I/O acquisition with reconfigurable parallel logic, providing a highly reliable hardware foundation for PLC expansion, motion control and industrial communication buses. Duyuan industrial-grade boards support a -40~85°C wide temperature range and long-term stable supply, helping devices move from prototype verification to mass production.
AI model deployment demands a balanced combination of compute power, bandwidth and power efficiency. With hardware parallelism, reconfigurable datapaths and rich high-speed interfaces, FPGA and MPSoC deliver low-latency, energy-efficient heterogeneous compute for CNN/YOLO inference, Vitis-AI acceleration and edge intelligence terminals, enabling rapid algorithm porting and product deployment.
5G/6G base stations and high-speed network equipment impose strict requirements on protocol processing, data forwarding and deterministic latency. With high-speed transceivers, reconfigurable protocol stacks and parallel pipelines, FPGA powers 100G optical communication, protocol processing and network security acceleration, providing a high-throughput, low-latency hardware platform from R&D to mass production.
4K/8K video, machine vision and industrial cameras impose strict requirements on end-to-end latency and interface coverage. With hardware-direct video paths and parallel pipelines, FPGA delivers microsecond-level deterministic processing in video encoding/decoding, image pre-processing, multi-protocol interfaces and low-latency transport, supporting deep customization of video services and vision algorithms.
