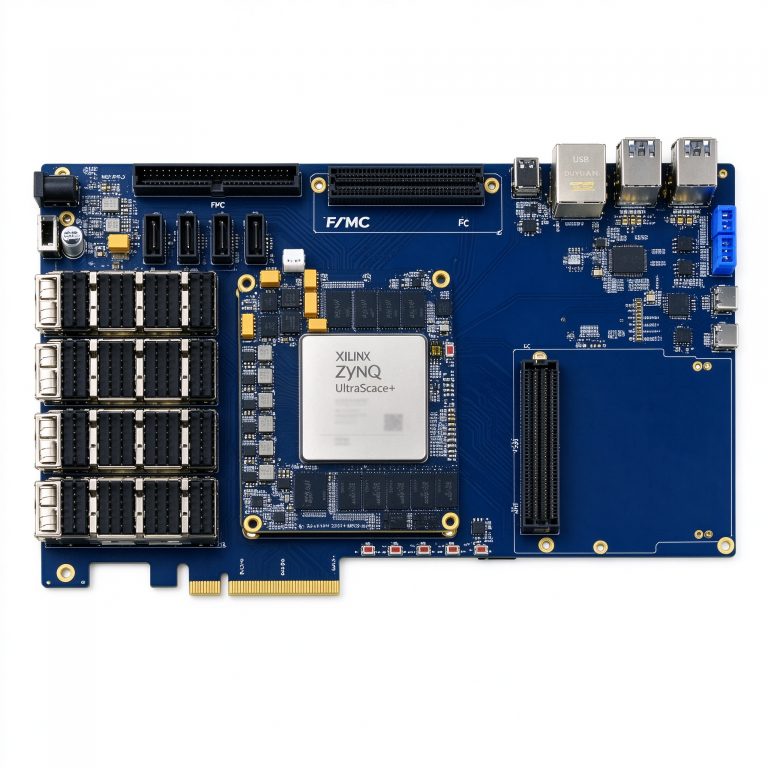

AMD Xilinx XCZU19EG Zynq UltraScale+ MPSoC PCIe FPGA Development Board
Zynq UltraScale+ MPSoC heterogeneous platform · quad-core A53 · 10GB ECC DDR4 · 4×25G optical ports
The DUUZ5EV development board is based on the Xilinx Zynq UltraScale+ MPSoC XCZU5EV-2SFVC784I industrial-grade chip, integrating a quad-core ARM Cortex-A53 application processor (1.33GHz) + dual-core Cortex-R5F real-time processor (533MHz) + Mali-400MP2 GPU, with an on-chip H.264/H.265 hardware video codec unit (VCU). The PL side features 256K logic cells, 117K LUTs, 1,248 DSP slices, 5.1 Mb Block RAM and 18 Mb UltraRAM. Onboard are PS-side 4GB DDR4 + PL-side 4GB DDR4, 32GB eMMC mass storage, and 16 pairs of GTH high-speed transceivers (at die level). The carrier board exposes 2× SFP+ optical ports, PCIe 3.0 x4 edge connector, FMC-LPC standard expansion, Mini DP display output, dual Gigabit Ethernet (PS + PL), 4× USB 3.0, M.2 NVMe SSD slot, UART/RS485/CAN, SD card and a 40P general-purpose header. PYNQ support enables rapid development; it is an ideal platform for smart vision, video codec, industrial control and edge-AI prototyping. Typical applications: smart surveillance and machine vision, automotive ADAS prototyping, H.264/H.265 video processing and codecs, industrial automation and data acquisition, edge AI inference, and research/education prototyping.
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
The DUUZ5EV development board is based on the Xilinx Zynq UltraScale+ MPSoC XCZU5EV-2SFVC784I industrial-grade chip, integrating a quad-core ARM Cortex-A53 application processor (1.33GHz) + dual-core Cortex-R5F real-time processor (533MHz) + Mali-400MP2 GPU, with an on-chip H.264/H.265 hardware video codec unit (VCU). The PL side features 256K logic cells, 117K LUTs, 1,248 DSP slices, 5.1 Mb Block RAM and 18 Mb UltraRAM. Onboard are PS-side 4GB DDR4 + PL-side 4GB DDR4, 32GB eMMC mass storage, and 16 pairs of GTH high-speed transceivers (at die level).
The carrier board exposes 2× SFP+ optical ports, PCIe 3.0 x4 edge connector, FMC-LPC standard expansion, Mini DP display output, dual Gigabit Ethernet (PS + PL), 4× USB 3.0, M.2 NVMe SSD slot, UART/RS485/CAN, SD card and a 40P general-purpose header. PYNQ support enables rapid development; it is an ideal platform for smart vision, video codec, industrial control and edge-AI prototyping.
Typical applications: smart surveillance and machine vision, automotive ADAS prototyping, H.264/H.265 video processing and codecs, industrial automation and data acquisition, edge AI inference, and research/education prototyping.
| Parameter | Specification |
|---|---|
| Product Model | DUUZ5EV V1.0 |
| MPSoC Chip | Xilinx XCZU5EV-2SFVC784I (Industrial, -40°C~+85°C) |
| PS Processor | Quad ARM Cortex-A53 @ 1.33GHz + Dual Cortex-R5F @ 533MHz |
| GPU | Mali-400MP2 |
| Video Codec | On-chip H.264/H.265 VCU hardware codec |
| PL Logic Cells | 256,000 Logic Cells |
| PL LUTs | 117,000 LUTs |
| PL DSP Slices | 1,248 |
| PL Block RAM | 5.1 Mb |
| PL UltraRAM | 18 Mb |
| GTH Transceivers | 16 pairs TX/RX (die level) · up to 16.3 Gbps |
| DDR4 Memory | PS 4GB (64bit) + PL 4GB |
| eMMC Storage | 32GB |
| QSPI Flash | 256Mb + 256Mb dual-boot |
| Boot Modes | JTAG · QSPI · SD · eMMC |
| Optical Interfaces | 2 × SFP+ (10G) |
| FMC Expansion | 1 × FMC LPC |
| PCIe | PCIe 3.0 x4 edge connector |
| Ethernet | PS 1× GigE + PL 1× GigE |
| Video | 1 × Mini DP output (4K@30Hz) |
| USB | 4 × USB 3.0 host |
| Storage Expansion | 1 × M.2 NVMe SSD · 1 × SD card |
| General Expansion | 40P header (32 single-ended / 16 differential pairs) |
| Others | UART · RS485 · CAN · user LED · push buttons · RTC · EEPROM |
| SoM Size | 83.8 × 64.8 mm (120P board-to-board) |
| Carrier Size | 180 × 122 mm · ENIG |
| Power Supply | +12V / 3A DC input |
Industrial sites impose strict requirements on control equipment: wide temperature range, interference immunity and deterministic latency. FPGA handles real-time control, protocol parsing and high-speed I/O acquisition with reconfigurable parallel logic, providing a highly reliable hardware foundation for PLC expansion, motion control and industrial communication buses. Duyuan industrial-grade boards support a -40~85°C wide temperature range and long-term stable supply, helping devices move from prototype verification to mass production.
AI model deployment demands a balanced combination of compute power, bandwidth and power efficiency. With hardware parallelism, reconfigurable datapaths and rich high-speed interfaces, FPGA and MPSoC deliver low-latency, energy-efficient heterogeneous compute for CNN/YOLO inference, Vitis-AI acceleration and edge intelligence terminals, enabling rapid algorithm porting and product deployment.
5G/6G base stations and high-speed network equipment impose strict requirements on protocol processing, data forwarding and deterministic latency. With high-speed transceivers, reconfigurable protocol stacks and parallel pipelines, FPGA powers 100G optical communication, protocol processing and network security acceleration, providing a high-throughput, low-latency hardware platform from R&D to mass production.
4K/8K video, machine vision and industrial cameras impose strict requirements on end-to-end latency and interface coverage. With hardware-direct video paths and parallel pipelines, FPGA delivers microsecond-level deterministic processing in video encoding/decoding, image pre-processing, multi-protocol interfaces and low-latency transport, supporting deep customization of video services and vision algorithms.
