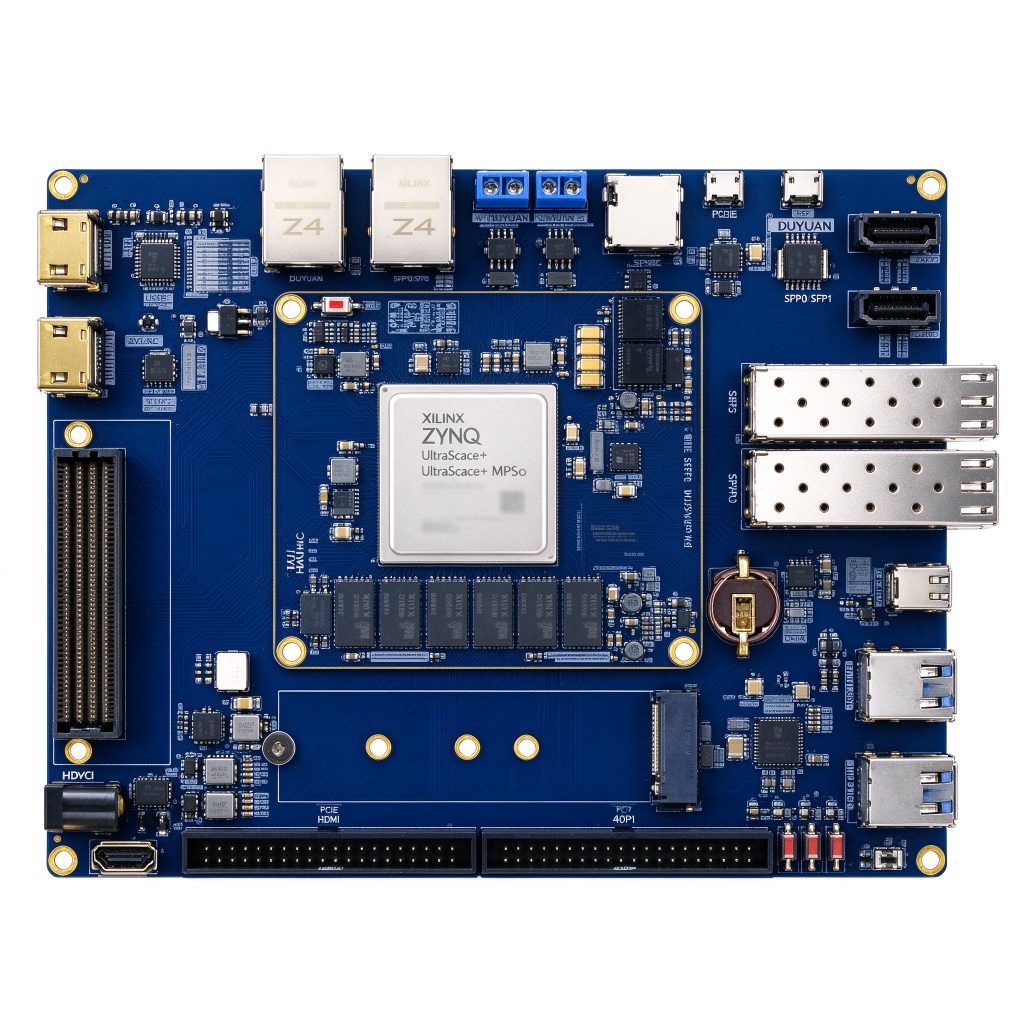

The DUUZ15EG development board is based on the Xilinx Zynq UltraScale+ MPSoC XCZU15EG-2FFVB1156I industrial-grade chip, integrating a quad-core ARM Cortex-A53 application processor + dual-core Cortex-R5F real-time processor + Mali-400MP2 GPU. The PL side features 747K logic cells, 1,728 DSP slices, and 26.2 Mb Block RAM. Onboard are 4GB PS-side DDR4 + 4GB PL-side DDR4, 32GB eMMC mass storage, and 24 pairs of GTH high-speed transceivers. The carrier board exposes 2× SFP+ optical ports (10G), dual FMC expansion ports (HPC + LPC), HDMI 4K input/output, dual Gigabit Ethernet, 4× USB 3.0, 2× SATA, Mini DP output, and dual MIPI CSI camera interfaces. PYNQ support enables rapid development. It is an ideal platform for communications prototyping, video processing, and AI inference applications. Typical applications: 5G communications prototyping and testing, software defined radio (SDR), video image processing and codecs, machine vision and AI inference, industrial automation and control, and research/education prototyping.
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
The DUUZ15EG development board is based on the Xilinx Zynq UltraScale+ MPSoC XCZU15EG-2FFVB1156I industrial-grade chip, integrating a quad-core ARM Cortex-A53 application processor + dual-core Cortex-R5F real-time processor + Mali-400MP2 GPU. The PL side features 747K logic cells, 1,728 DSP slices, and 26.2 Mb Block RAM. Onboard are 4GB PS-side DDR4 + 4GB PL-side DDR4, 32GB eMMC mass storage, and 24 pairs of GTH high-speed transceivers.
The carrier board exposes 2× SFP+ optical ports (10G), dual FMC expansion ports (HPC + LPC), HDMI 4K input/output, dual Gigabit Ethernet, 4× USB 3.0, 2× SATA, Mini DP output, and dual MIPI CSI camera interfaces. PYNQ support enables rapid development. It is an ideal platform for communications prototyping, video processing, and AI inference applications.
Typical applications: 5G communications prototyping and testing, software defined radio (SDR), video image processing and codecs, machine vision and AI inference, industrial automation and control, and research/education prototyping.
| Parameter | Specification |
|---|---|
| Product Model | DUUZ15EG V1.0 |
| MPSoC Chip | Xilinx XCZU15EG-2FFVB1156I (Industrial) |
| PS Processor | Quad ARM Cortex-A53 @ 1.333GHz + Dual Cortex-R5F @ 533MHz |
| GPU | Mali-400MP2 @ 667MHz |
| PL Logic Cells | 747,000 Logic Cells |
| PL LUTs | 341,000 LUTs |
| PL DSP Slices | 1,728 |
| PL Block RAM | 26.2 Mb |
| GTH Transceivers | 24 pairs TX/RX · up to 16.3 Gbps |
| GTR Transceivers | 4 pairs TX/RX (PS side) |
| DDR4 Memory | PS 4GB + PL 4GB |
| eMMC Storage | 32GB |
| QSPI Flash | 256Mb + 256Mb dual-boot |
| Boot Modes | JTAG · QSPI · SD · eMMC |
| Optical Interfaces | 2 × SFP+ (10G) |
| FMC Expansion | 1 × FMC HPC (8 GTH, 72 I/O) + 1 × FMC LPC |
| Ethernet | PS 1× GigE + PL 1× GigE |
| Video | 1 × HDMI input + 1 × HDMI 2.0 output + 1 × Mini DP |
| USB | 4 × USB 3.0 host |
| Storage Expansion | 2 × SATA · 1 × SD card · 1 × M.2 NVMe SSD |
| MIPI | 2× MIPI CSI-2 camera input |
| Others | UART · RS485 · CAN · 4× user LED · 4× push buttons · RTC · EEPROM · 2 × 40P expansion |
| SoM Size | 85 × 75 mm (168P board-to-board ×2) |
| Carrier Size | 180 × 140 mm · ENIG |
| Power Supply | +12V / 3A DC input |
AI model deployment demands a balanced combination of compute power, bandwidth and power efficiency. With hardware parallelism, reconfigurable datapaths and rich high-speed interfaces, FPGA and MPSoC deliver low-latency, energy-efficient heterogeneous compute for CNN/YOLO inference, Vitis-AI acceleration and edge intelligence terminals, enabling rapid algorithm porting and product deployment.
5G/6G base stations and high-speed network equipment impose strict requirements on protocol processing, data forwarding and deterministic latency. With high-speed transceivers, reconfigurable protocol stacks and parallel pipelines, FPGA powers 100G optical communication, protocol processing and network security acceleration, providing a high-throughput, low-latency hardware platform from R&D to mass production.
From university labs to enterprise pre-research, rapidly verifying algorithms and hardware architectures is the critical first step to project success. Duyuan FPGA development boards and SoMs provide rich high-speed interfaces, complete reference designs and end-to-end technical support for ASIC prototype verification, high-speed data acquisition, instrument development and academic research — helping teams turn ideas into working hardware systems quickly.
4K/8K video, machine vision and industrial cameras impose strict requirements on end-to-end latency and interface coverage. With hardware-direct video paths and parallel pipelines, FPGA delivers microsecond-level deterministic processing in video encoding/decoding, image pre-processing, multi-protocol interfaces and low-latency transport, supporting deep customization of video services and vision algorithms.
