Fudan Micro JFMQL20S400 Stamp-Hole SoM Development Kit
$846Tax not included View details →

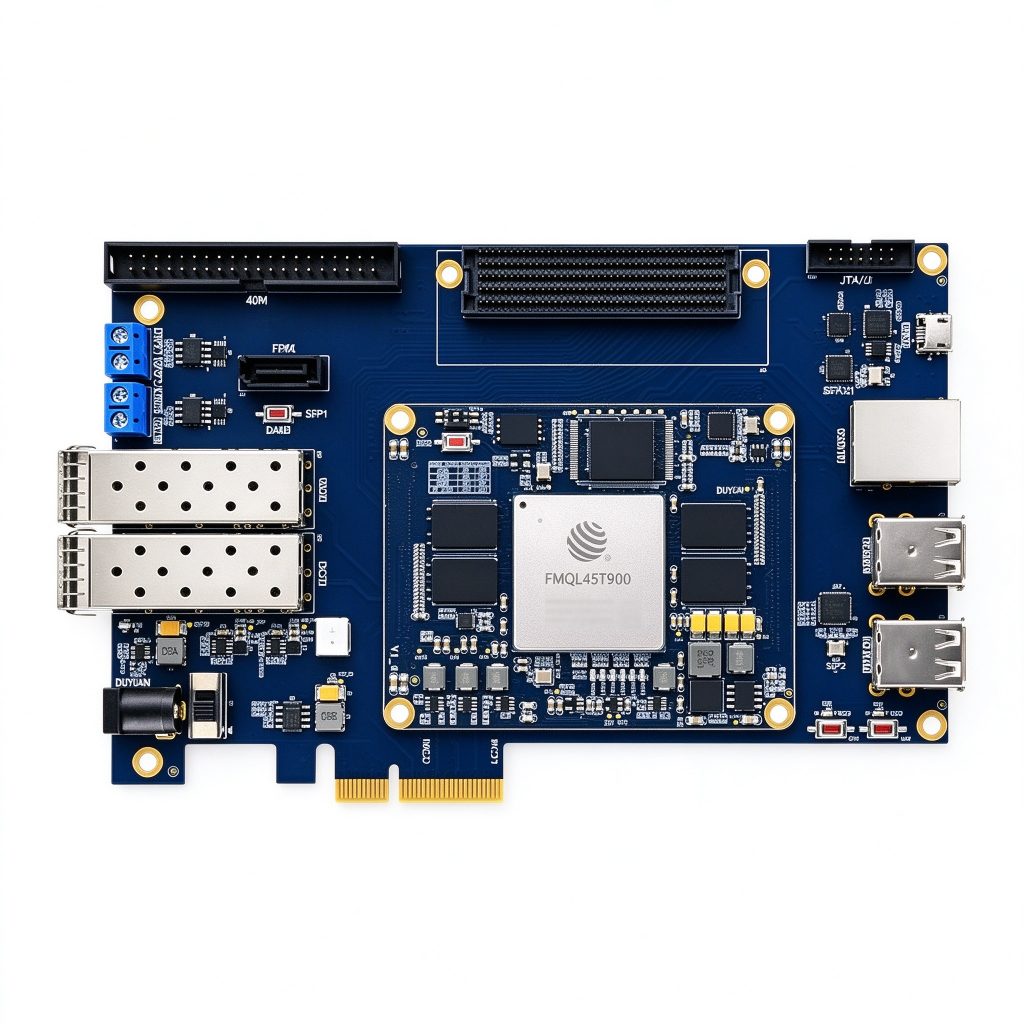

The DUF7045F development board is built on the Fudan Micro FMQL45T900 industrial-grade heterogeneous computing SoC (PSOC7000 family), integrating a quad-core ARM Cortex-A7 processing system (PS, 800MHz) and programmable logic (PL: 437,200 flip-flops, 900 DSP slices). It carries 2GB DDR3 on the PS side and 1GB DDR3L on the PL side, plus 32GB eMMC mass storage. The carrier board brings out an FMC HPC connector (6 GTX pairs, 168 I/O), a PCIe 2.0 x8 edge connector, dual Gigabit Ethernet (one PS-side, one PL-side), HDMI 1.4 video output, SATA, an SFP optical port, USB 2.0 Host, RS485/CAN and more. It supports bare-metal, RTOS and Linux development, and can be used directly in industrial control, machine vision, high-speed data acquisition, software-defined radio and domestic substitution projects — a domestically produced heterogeneous computing platform for high-reliability industrial and mission-critical applications.
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
The DUF7045F development board is built on the Fudan Micro FMQL45T900 industrial-grade heterogeneous computing SoC (PSOC7000 family), integrating a quad-core ARM Cortex-A7 processing system (PS, 800MHz) and programmable logic (PL: 437,200 flip-flops, 900 DSP slices). It carries 2GB DDR3 on the PS side and 1GB DDR3L on the PL side, plus 32GB eMMC mass storage.
The carrier board brings out an FMC HPC connector (6 GTX pairs, 168 I/O), a PCIe 2.0 x8 edge connector, dual Gigabit Ethernet (one PS-side, one PL-side), HDMI 1.4 video output, SATA, an SFP optical port, USB 2.0 Host, RS485/CAN and more. It supports bare-metal, RTOS and Linux development, and can be used directly in industrial control, machine vision, high-speed data acquisition, software-defined radio and domestic substitution projects — a domestically produced heterogeneous computing platform for high-reliability industrial and mission-critical applications.
| Parameter | Specification |
|---|---|
| Product Model | DUF7045F V1.0 |
| Main SoC | Fudan Micro FMQL45T900 (PSOC7000 family) |
| Processing System (PS) | Quad-core ARM Cortex-A7 @ 800MHz |
| Programmable Logic (PL) | 437,200 flip-flops · 900 DSP slices |
| Temperature Grade | Industrial -40℃ to 85℃ |
| GTX Transceivers | 16 TX/RX pairs, up to 6.25 Gbps per channel |
| PCI Express | PCIe 2.0 x8 edge connector (backward compatible with x4/x2/x1) |
| User I/O | 240 single-ended / 120 differential pairs (1.8V / 2.5V / 3.3V adjustable) |
| Onboard Memory | 2GB DDR3 (PS) + 1GB DDR3L (PL), 3GB total |
| Onboard Storage | 32GB eMMC · 256Mb QSPI Flash |
| Boot Options | JTAG · QSPI · eMMC · SD card (DIP switch selectable) |
| Onboard Clocks | 1×33.333MHz single-ended oscillator (PS) + 1×200MHz differential oscillator (PL) + 1×125MHz differential oscillator (GTX reference) |
| FMC Connector | 1 × FMC HPC (6 GTX pairs, 168 I/O) |
| Network | 2 × Gigabit Ethernet (1 PS-side + 1 PL-side) |
| Optical Port | 1 × SFP |
| Display | 1 × HDMI 1.4 output |
| Other I/O | SATA · USB 2.0 Host ×4 · UART ×1 · RS485 ×1 · CAN ×1 · 40-pin expansion header · user LEDs ×4 · buttons ×4 |
| SoM Size | 83.8 × 64.8 mm · all I/O via board-to-board connectors |
| Power Supply | +12V / 3A DC input |
