Fudan Micro JFMQL20S400 Heterogeneous FPGA Development Board
$923Tax not included View details →

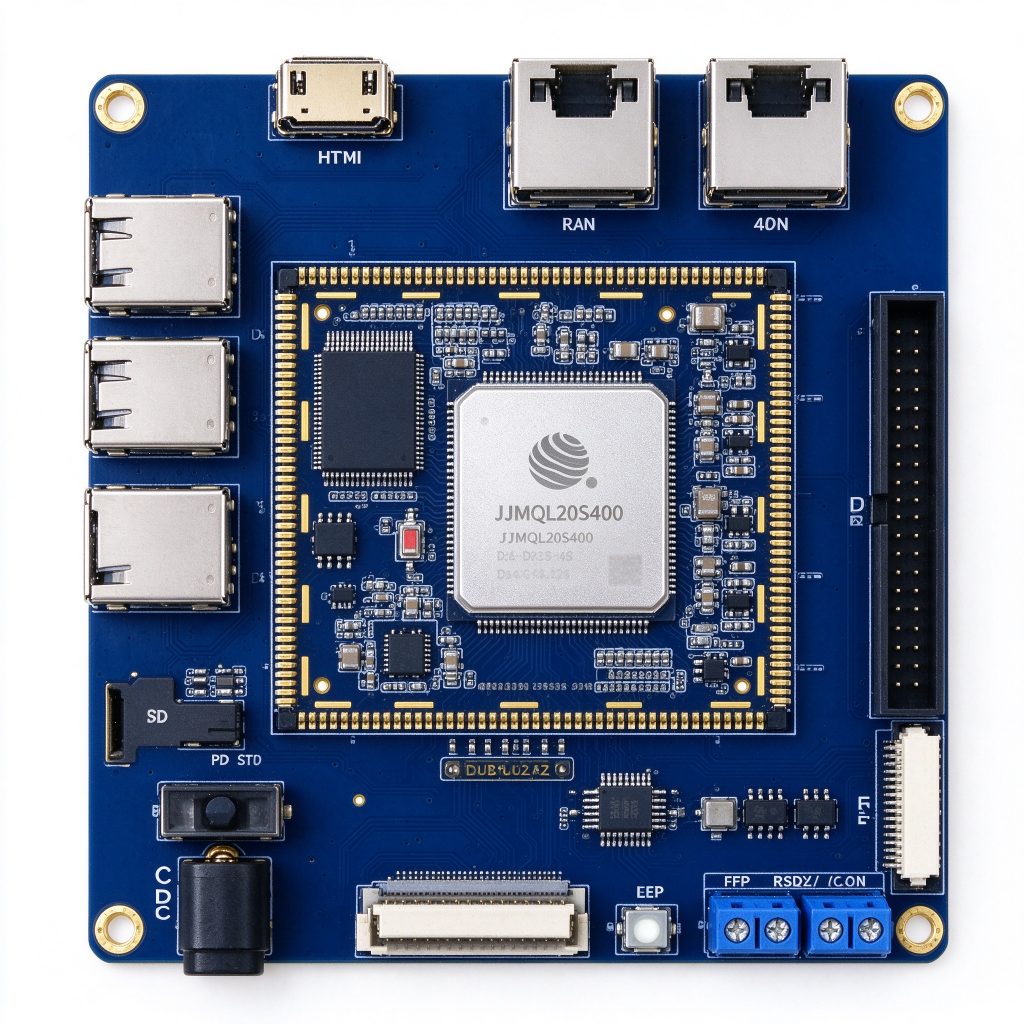

The DUF7020S features a 61×61mm stamp-hole (castellated) SoM with no components on the back, so it can be soldered directly onto the customer's custom carrier board — the ideal choice for product design-in. The SoM integrates the Fudan Micro JFMQL20S400 heterogeneous SoC (quad-core Cortex-A7 + 53.2K LUTs + 220 DSPs), 2GB DDR3, 8GB eMMC and 512Mb QSPI, with all I/O routed out via the stamp-hole pads. The included carrier board brings out dual Gigabit Ethernet (PS-side + PL-side), HDMI 1.4 output, SD card, USB 2.0 Host/Device, RS485/CAN, dual 40-pin expansion headers and an FPC connector, plus an RTC real-time clock and hardware watchdog. It supports bare-metal, RTOS and Linux development, helping customers move quickly from prototyping to volume production — a production-oriented heterogeneous computing platform for high-reliability industrial and mission-critical applications.
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
The DUF7020S features a 61×61mm stamp-hole (castellated) SoM with no components on the back, so it can be soldered directly onto the customer’s custom carrier board — the ideal choice for product design-in. The SoM integrates the Fudan Micro JFMQL20S400 heterogeneous SoC (quad-core Cortex-A7 + 53.2K LUTs + 220 DSPs), 2GB DDR3, 8GB eMMC and 512Mb QSPI, with all I/O routed out via the stamp-hole pads.
The included carrier board brings out dual Gigabit Ethernet (PS-side + PL-side), HDMI 1.4 output, SD card, USB 2.0 Host/Device, RS485/CAN, dual 40-pin expansion headers and an FPC connector, plus an RTC real-time clock and hardware watchdog. It supports bare-metal, RTOS and Linux development, helping customers move quickly from prototyping to volume production — a production-oriented heterogeneous computing platform for high-reliability industrial and mission-critical applications.
| Parameter | Specification |
|---|---|
| Product Model | DUF7020S V1.0 |
| Main SoC | Fudan Micro JFMQL20S400 (PSOC7000 family) |
| Processing System (PS) | Quad-core ARM Cortex-A7 @ 800MHz |
| Programmable Logic (PL) | 85K logic cells · 53,200 LUTs · 106,400 flip-flops · 220 DSP slices · 4.9Mb block RAM |
| Temperature Grade | Industrial -40℃ to 85℃ |
| SoM I/O | 118 single-ended PL I/O (70 fixed 3.3V, 48 adjustable 1.8/2.5/3.3V) |
| Onboard Memory | 2GB DDR3 (shared PS/PL) |
| Onboard Storage | 8GB eMMC · 512Mb QSPI Flash · EEPROM config storage |
| Boot Options | JTAG · QSPI · eMMC · SD card (DIP switch selectable) |
| Onboard Clocks | 1×33.333MHz single-ended oscillator (PS) + 1×50MHz single-ended oscillator (PL) + RTC |
| SoM Package | 61 × 61 mm stamp-hole package · no components on back · direct solder to customer carrier |
| Network | 2 Gigabit Ethernet ports (1× PS-side + 1× PL-side) |
| Display | 1 × HDMI 1.4 output |
| Expansion | 2 × 40-pin 2.54mm headers (56 single-ended I/O total) · 1 × 40-pin FPC connector (24 SE / 12 diff pairs) |
| Other I/O | SD card · USB 2.0 Host ×1 · USB 2.0 Device ×1 · UART ×1 · RS485 ×1 · CAN ×1 · user LEDs ×5 · buttons ×4 · hardware watchdog |
| Carrier Size | 128 × 96 mm · ENIG finish |
| Power Supply | +5V / 1A DC input |
