Fudan Micro JFMQL20S400 Heterogeneous FPGA Development Board
China SoPC China PSOC7000 JFMQL20S400 Entry-Level Heterogeneous Industrial -40~85℃

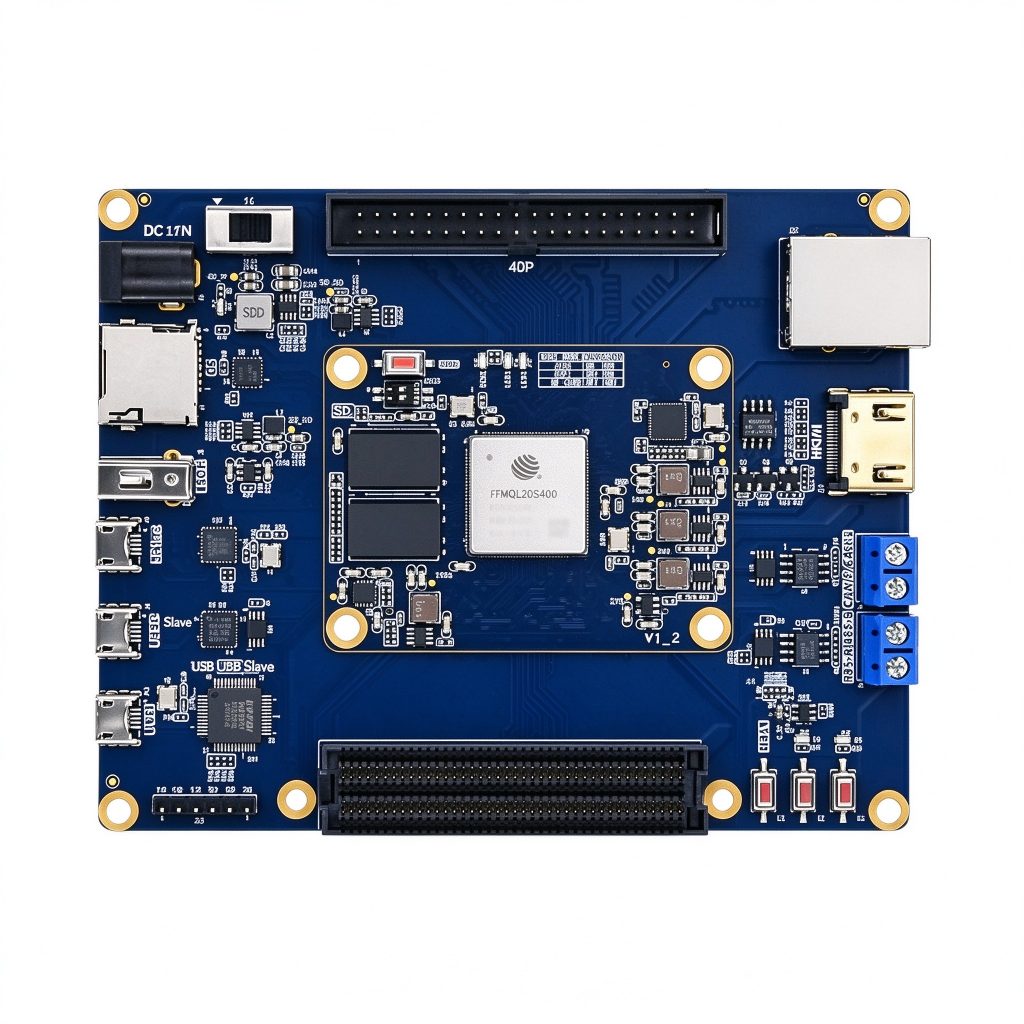

Fudan Micro JFMQL20S400 Heterogeneous FPGA Development Board

Board model: DUF7020F V1.0

The DUF7020F development board is built on the Fudan Micro JFMQL20S400 industrial-grade heterogeneous computing SoC (PSOC7000 family), integrating a quad-core ARM Cortex-A7 processing system (PS, 800MHz) and programmable logic (PL: 85K logic cells, 53,200 LUTs, 220 DSP slices, 4.9Mb block RAM), with 2GB DDR3 and 8GB eMMC mass storage onboard. The carrier board brings out an FMC-LPC expansion connector (72 I/O), dual Ethernet (Gigabit on the PS side + Fast Ethernet on the PL side), HDMI 1.4 video output, SD card, USB 2.0 Host/Device, RS485/CAN industrial buses, plus an onboard RTC real-time clock and hardware watchdog. It supports bare-metal, RTOS and Linux development, and is an ideal platform for industrial control gateways, education and research, and cost-effective domestic substitution — suitable for high-reliability industrial and mission-critical applications.

$923 Tax not included · batch and customization supported
Quad-Core Cortex-A7 @ 800MHz · 85K Logic Cells · 220 DSPs
2GB DDR3 + 8GB eMMC Mass Storage
Dual Ethernet · PS Gigabit + PL Fast Ethernet
FMC-LPC Expansion · All 72 I/O Brought Out
RTC Real-Time Clock + Hardware Watchdog
Industrial -40~85℃ · Domestic & Self-Controlled
Request a Quote

Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.

Specifications

Data source: www.profpga.net official product page

The DUF7020F development board is built on the Fudan Micro JFMQL20S400 industrial-grade heterogeneous computing SoC (PSOC7000 family), integrating a quad-core ARM Cortex-A7 processing system (PS, 800MHz) and programmable logic (PL: 85K logic cells, 53,200 LUTs, 220 DSP slices, 4.9Mb block RAM), with 2GB DDR3 and 8GB eMMC mass storage onboard.

The carrier board brings out an FMC-LPC expansion connector (72 I/O), dual Ethernet (Gigabit on the PS side + Fast Ethernet on the PL side), HDMI 1.4 video output, SD card, USB 2.0 Host/Device, RS485/CAN industrial buses, plus an onboard RTC real-time clock and hardware watchdog. It supports bare-metal, RTOS and Linux development, and is an ideal platform for industrial control gateways, education and research, and cost-effective domestic substitution — suitable for high-reliability industrial and mission-critical applications.

Parameter Specification
Product Model DUF7020F V1.0
Main SoC Fudan Micro JFMQL20S400 (PSOC7000 family)
Processing System (PS) Quad-core ARM Cortex-A7 @ 800MHz
Programmable Logic (PL) 85K logic cells · 53,200 LUTs · 106,400 flip-flops · 220 DSP slices · 4.9Mb block RAM
Temperature Grade Industrial -40℃ to 85℃
User I/O 30 MIO (PS) · 116 single-ended I/O (PL), 1.8V / 2.5V / 3.3V adjustable
Onboard Memory 2GB DDR3 (shared PS/PL)
Onboard Storage 8GB eMMC · 512Mb QSPI Flash
Boot Options JTAG · QSPI · eMMC · SD card (DIP switch selectable)
Onboard Clocks 1×33.333MHz single-ended oscillator (PS) + 1×50MHz single-ended oscillator (PL) + RTC
FMC Connector 1 × FMC LPC (72 I/O)
Network 2 Ethernet ports (1× PS Gigabit + 1× PL Fast Ethernet)
Display 1 × HDMI 1.4 output
Other I/O SD card · USB 2.0 Host ×1 · USB 2.0 Device ×1 · UART ×1 · RS485 ×1 · CAN ×1 · 40-pin expansion header · user LEDs ×4 · buttons ×4 · hardware watchdog
SoM Size 60 × 45 mm · all I/O via board-to-board connectors
Carrier Size 120 × 95 mm · ENIG finish
Power Supply +12V / 1A DC input
