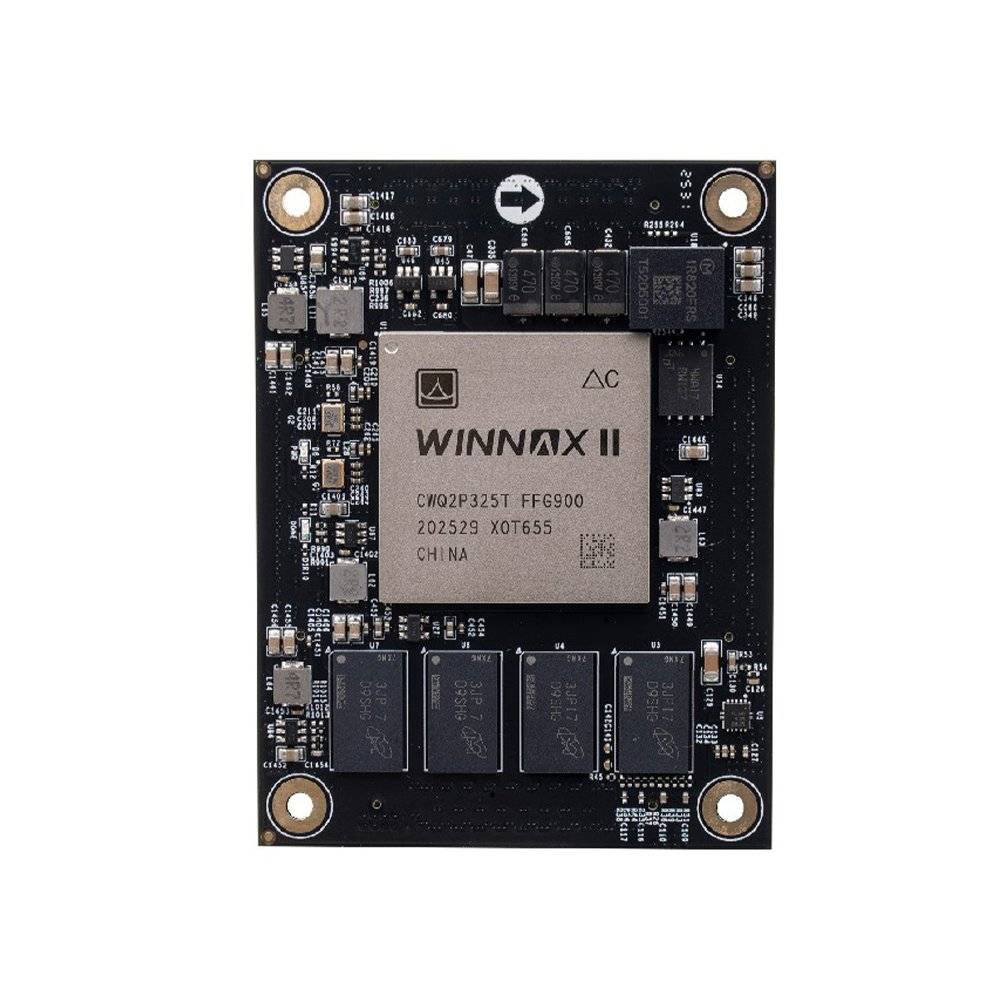

The C7K325G China FPGA SoM is built on the China-based industrial FPGA chip CWQ2P325T-FFG900, operating stably across -40°C to 85°C. Following the Kintex-7 architecture, it integrates 326K logic cells, 16 GTX high-speed transceivers and 2GB large-capacity DDR3 memory. Fully compatible with the Vivado development ecosystem without extra patches, it offers high reliability, cost-effectiveness and easy integration — an ideal core platform for China-based replacement and high-performance embedded control scenarios.
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
The C7K325G China FPGA SoM is built on the China-based industrial FPGA chip CWQ2P325T-FFG900, operating stably across -40°C to 85°C. Following the Kintex-7 architecture, it integrates 326K logic cells, 16 GTX high-speed transceivers and 2GB large-capacity DDR3 memory. Fully compatible with the Vivado development ecosystem without extra patches, it offers high reliability, cost-effectiveness and easy integration — an ideal core platform for China-based replacement and high-performance embedded control scenarios.
| Parameter | Specification |
|---|---|
| SoM Model | C7K325G |
| FPGA Chip Model | CWQ2P325T-FFG900 |
| DDR Memory | DDR3 2GB |
| Chip Grade | Industrial; temperature range: -40°C ~ 85°C |
| Logic Cells | 326,080 |
| LUTs | 50,950 |
| Flip-Flops | 407,600 |
| DSP | 840 |
| Block RAM | 16,020Kb |
| QSPI Flash | 128Mbit |
| I/O Count | 276 |
| LVDS Differential Pairs | 46 |
| PCIe Gen2 | 1 |
| Transceivers | 16 |
| Voltage-Configurable I/O | 92 |
| DDR3 Configuration | 4× 512MB DDR3, 64bit bus, up to 1600Mbps |
| QSPI Flash Configuration | 1× 16MB QSPI Flash for FPGA user data storage |
| Oscillators | High-precision LVDS active differential oscillators: 200MHz system clock; 125MHz transceiver clock |
| Transceivers | 16 GTX, 12.5Gb/s each |
| PCIe | PCI Express 2.0 supported |
| XADC | 1× 12-bit, 1Mbps sampling AD |
| LEDs | 1 PWR LED; 1 DONE configuration LED |
| Connectors | 4× 120-pin Panasonic connectors |
| Input Voltage | 5V |
| Dimensions | 60mm × 80mm × 11.5mm |
Industrial sites impose strict requirements on control equipment: wide temperature range, interference immunity and deterministic latency. FPGA handles real-time control, protocol parsing and high-speed I/O acquisition with reconfigurable parallel logic, providing a highly reliable hardware foundation for PLC expansion, motion control and industrial communication buses. Duyuan industrial-grade boards support a -40~85°C wide temperature range and long-term stable supply, helping devices move from prototype verification to mass production.
5G/6G base stations and high-speed network equipment impose strict requirements on protocol processing, data forwarding and deterministic latency. With high-speed transceivers, reconfigurable protocol stacks and parallel pipelines, FPGA powers 100G optical communication, protocol processing and network security acceleration, providing a high-throughput, low-latency hardware platform from R&D to mass production.
From university labs to enterprise pre-research, rapidly verifying algorithms and hardware architectures is the critical first step to project success. Duyuan FPGA development boards and SoMs provide rich high-speed interfaces, complete reference designs and end-to-end technical support for ASIC prototype verification, high-speed data acquisition, instrument development and academic research — helping teams turn ideas into working hardware systems quickly.
4K/8K video, machine vision and industrial cameras impose strict requirements on end-to-end latency and interface coverage. With hardware-direct video paths and parallel pipelines, FPGA delivers microsecond-level deterministic processing in video encoding/decoding, image pre-processing, multi-protocol interfaces and low-latency transport, supporting deep customization of video services and vision algorithms.
