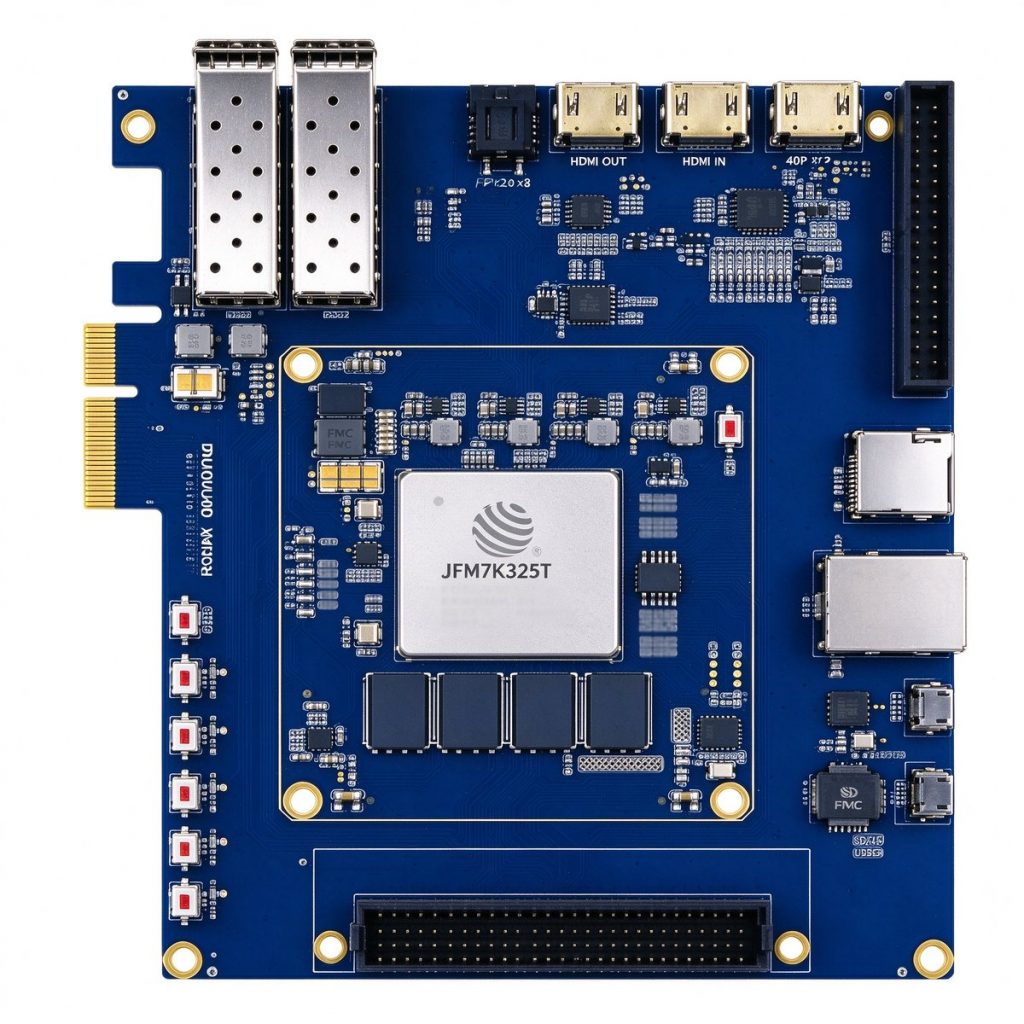

The DUK7325T development board is built on the Fudan Microelectronics JFM7K325T industrial-grade FPGA (Vivado toolchain compatible, industrial -40°C to +85°C), integrating 326K logic cells, 50.9K LUTs, 840 DSP slices and 16 Mb Block RAM, with 16 GTX transceiver pairs (up to 6.6 Gbps per lane) and a PCIe 2.0 x8 hard core. The 83.8×64.8mm core board integrates 4GB DDR3 (64-bit, up to 1866 Mbps) and 256Mb QSPI Flash; the 165×108mm carrier board with ENIG finish breaks out FMC HPC (8 GT pairs, 168 IO), 2×SFP+ optical interfaces, HDMI 4K input/output with loopback, Gigabit Ethernet, SD card, USB-JTAG and UART, plus 200MHz and 125MHz differential clocks. Targeting industrial control (PLC, motion control, EtherCAT slaves and protocol conversion), video & image processing (HDMI 4K loopback, multi-channel video stitching and hardware preprocessing), communication (2×SFP+ optical links, Aurora/Ethernet protocol loopback) and research & prototyping (digital circuits, communication principles and embedded system labs); the JFM7K325T is compatible with the XC7K325T, enabling smooth localization for power, rail transit and high-reliability equipment projects — a cost-effective choice for industrial vision and localization platforms. The core board and carrier board ship as a complete unit, with optional FMC ADC/DAC daughter cards; final configuration is subject to commercial confirmation.
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
The DUK7325T development board is built on the Fudan Microelectronics JFM7K325T industrial-grade FPGA (Vivado toolchain compatible, industrial -40°C to +85°C), integrating 326K logic cells, 50.9K LUTs, 840 DSP slices and 16 Mb Block RAM, with 16 GTX transceiver pairs (up to 6.6 Gbps per lane) and a PCIe 2.0 x8 hard core. The 83.8×64.8mm core board integrates 4GB DDR3 (64-bit, up to 1866 Mbps) and 256Mb QSPI Flash; the 165×108mm carrier board with ENIG finish breaks out FMC HPC (8 GT pairs, 168 IO), 2×SFP+ optical interfaces, HDMI 4K input/output with loopback, Gigabit Ethernet, SD card, USB-JTAG and UART, plus 200MHz and 125MHz differential clocks. Targeting industrial control (PLC, motion control, EtherCAT slaves and protocol conversion), video & image processing (HDMI 4K loopback, multi-channel video stitching and hardware preprocessing), communication (2×SFP+ optical links, Aurora/Ethernet protocol loopback) and research & prototyping (digital circuits, communication principles and embedded system labs); the JFM7K325T is compatible with the XC7K325T, enabling smooth localization for power, rail transit and high-reliability equipment projects — a cost-effective choice for industrial vision and localization platforms. The core board and carrier board ship as a complete unit, with optional FMC ADC/DAC daughter cards; final configuration is subject to commercial confirmation.
| Parameter | Specification |
|---|---|
| Product Model | DUK7325T V1.0 |
| FPGA | Fudan Microelectronics JFM7K325T (speed grade 2, industrial -40°C to +85°C, Vivado compatible) |
| Logic Cells / LUTs / Flip-Flops | 326K Logic Cells · 50.9K LUTs · 407.6K Flip-Flops |
| DSP / Block RAM | 840 DSP Slices · 16 Mb Total Block RAM |
| GTX Transceivers | 16 TX/RX pairs, up to 6.6 Gbps per lane |
| PCI Express | 1 hard-core PCIe Gen2 x8 (5.0 GT/s) |
| User I/O | 288 single-ended / 144 differential pairs (1.8V / 2.5V / 3.3V configurable, default 3.3V) |
| On-board Memory | 4GB DDR3 / 64-bit (up to 1866 Mbps) |
| Configuration Flash | 256Mb QSPI (boot files and user files) |
| On-board Clocks | 1×200MHz differential oscillator (FPGA) + 1×125MHz differential oscillator (GTX reference) |
| FMC Interface | 1 × FMC HPC (8 GTX pairs, 168 IO) |
| Optical Interface | 2 × SFP+ (1G/10G auto-negotiation) |
| Video Interface | HDMI 4K input ×1 + HDMI output ×1 (loopback supported) |
| Other Interfaces | Gigabit Ethernet · SD card · USB-JTAG · UART · 5 user LEDs + 5 buttons · 40P expansion header |
| Core Board | 83.8 × 64.8 mm · board-to-board connector breaks out all I/O |
| Carrier Board | 165 × 108 mm · ENIG finish |
| Power Supply | +12V / 3A DC input |
Industrial sites impose strict requirements on control equipment: wide temperature range, interference immunity and deterministic latency. FPGA handles real-time control, protocol parsing and high-speed I/O acquisition with reconfigurable parallel logic, providing a highly reliable hardware foundation for PLC expansion, motion control and industrial communication buses. Duyuan industrial-grade boards support a -40~85°C wide temperature range and long-term stable supply, helping devices move from prototype verification to mass production.
5G/6G base stations and high-speed network equipment impose strict requirements on protocol processing, data forwarding and deterministic latency. With high-speed transceivers, reconfigurable protocol stacks and parallel pipelines, FPGA powers 100G optical communication, protocol processing and network security acceleration, providing a high-throughput, low-latency hardware platform from R&D to mass production.
From university labs to enterprise pre-research, rapidly verifying algorithms and hardware architectures is the critical first step to project success. Duyuan FPGA development boards and SoMs provide rich high-speed interfaces, complete reference designs and end-to-end technical support for ASIC prototype verification, high-speed data acquisition, instrument development and academic research — helping teams turn ideas into working hardware systems quickly.
4K/8K video, machine vision and industrial cameras impose strict requirements on end-to-end latency and interface coverage. With hardware-direct video paths and parallel pipelines, FPGA delivers microsecond-level deterministic processing in video encoding/decoding, image pre-processing, multi-protocol interfaces and low-latency transport, supporting deep customization of video services and vision algorithms.
