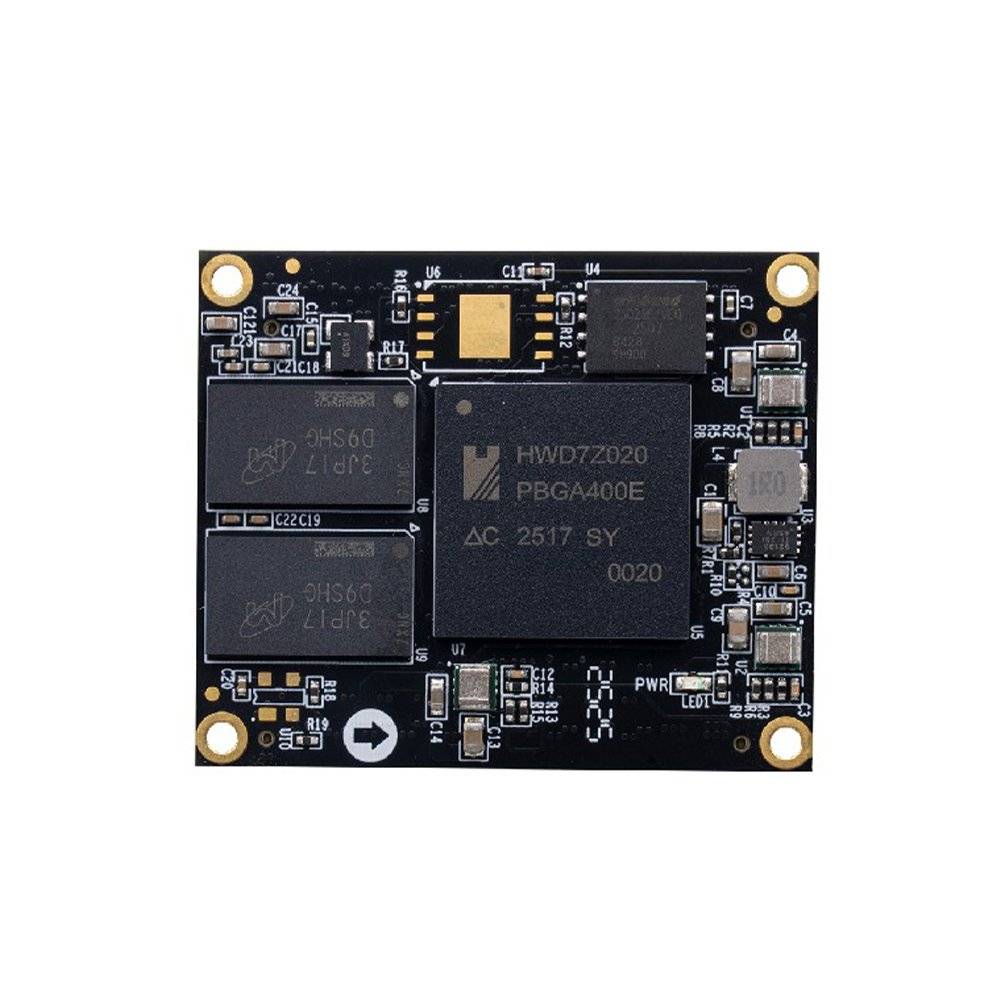

China FPGA Zynq SoC SoM – PBC7Z021G
China FPGA Zynq SoC SoM · HWD7Z020 · dual-core A9 + FPGA · -55~125°C wide temperature · 60×60mm
$153.69Tax not included View details →
The C7Z020G is a China-based ZYNQ-architecture SoC module, built on the China-based industrial chip HWD7Z020-1PBGA400, integrating dual-core ARM Cortex-A9 and FPGA programmable logic in a heterogeneous architecture. With an ultra-wide -55°C to 125°C temperature range, ultra-compact 35×42×5.5mm size, native Vivado compatibility without patches and high cost-effectiveness, it is an ideal core platform for miniaturized embedded systems, industrial control, medical devices, aerospace and China-based replacement scenarios.
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
The C7Z020G is a China-based ZYNQ-architecture SoC module, built on the China-based industrial chip HWD7Z020-1PBGA400, integrating dual-core ARM Cortex-A9 and FPGA programmable logic in a heterogeneous architecture. With an ultra-wide -55°C to 125°C temperature range, ultra-compact 35×42×5.5mm size, native Vivado compatibility without patches and high cost-effectiveness, it is an ideal core platform for miniaturized embedded systems, industrial control, medical devices, aerospace and China-based replacement scenarios.
| Parameter | Specification |
|---|---|
| SoM Model | C7Z020G |
| FPGA Chip Model | HWD7Z020-1PBGA400 |
| ARM Core Chip | Dual-core ARM Cortex-A9 (800MHz) |
| DDR Memory | DDR3 1GB |
| Chip Grade | Industrial; operating temperature range -55°C ~ 125°C |
| Logic Cells | 85K |
| LUTs | 53,200 |
| Flip-Flops | 106,400 |
| DSP | 220 |
| Block RAM | 4.9Mb |
| eMMC Flash | 8GB |
| QSPI Flash | 256Mbit |
| PS MIO | 39 |
| PL I/O | 198 |
| LVDS Differential Pairs | 48 |
| Voltage-Configurable I/O | 100 |
| DDR3 Configuration | 32bit bus, up to 1066Mbps |
| QSPI Flash Configuration | 1× 32MB QSPI Flash for FPGA user data storage |
| AD Converter | 2 ADC, on-chip ADC measures on-die voltage and temperature, 1Mbps sampling |
| Oscillator | 1× 33.33MHz active oscillator providing PS clock source |
| Connectors | 2× 120-pin Panasonic connectors |
| LEDs | 1 power LED |
| Input Voltage | 5V |
| Dimensions | 35mm × 42mm × 5.5mm |
Industrial sites impose strict requirements on control equipment: wide temperature range, interference immunity and deterministic latency. FPGA handles real-time control, protocol parsing and high-speed I/O acquisition with reconfigurable parallel logic, providing a highly reliable hardware foundation for PLC expansion, motion control and industrial communication buses. Duyuan industrial-grade boards support a -40~85°C wide temperature range and long-term stable supply, helping devices move from prototype verification to mass production.
AI model deployment demands a balanced combination of compute power, bandwidth and power efficiency. With hardware parallelism, reconfigurable datapaths and rich high-speed interfaces, FPGA and MPSoC deliver low-latency, energy-efficient heterogeneous compute for CNN/YOLO inference, Vitis-AI acceleration and edge intelligence terminals, enabling rapid algorithm porting and product deployment.
5G/6G base stations and high-speed network equipment impose strict requirements on protocol processing, data forwarding and deterministic latency. With high-speed transceivers, reconfigurable protocol stacks and parallel pipelines, FPGA powers 100G optical communication, protocol processing and network security acceleration, providing a high-throughput, low-latency hardware platform from R&D to mass production.
Medical equipment demands the highest levels of image quality, real-time performance and reliability. FPGA provides low-latency pipelines and highly reliable hardware for endoscope ISP, medical image processing and device control, helping China-based medical devices achieve independent and controllable development in image enhancement, interface protocols and system miniaturization.
From university labs to enterprise pre-research, rapidly verifying algorithms and hardware architectures is the critical first step to project success. Duyuan FPGA development boards and SoMs provide rich high-speed interfaces, complete reference designs and end-to-end technical support for ASIC prototype verification, high-speed data acquisition, instrument development and academic research — helping teams turn ideas into working hardware systems quickly.
4K/8K video, machine vision and industrial cameras impose strict requirements on end-to-end latency and interface coverage. With hardware-direct video paths and parallel pipelines, FPGA delivers microsecond-level deterministic processing in video encoding/decoding, image pre-processing, multi-protocol interfaces and low-latency transport, supporting deep customization of video services and vision algorithms.
